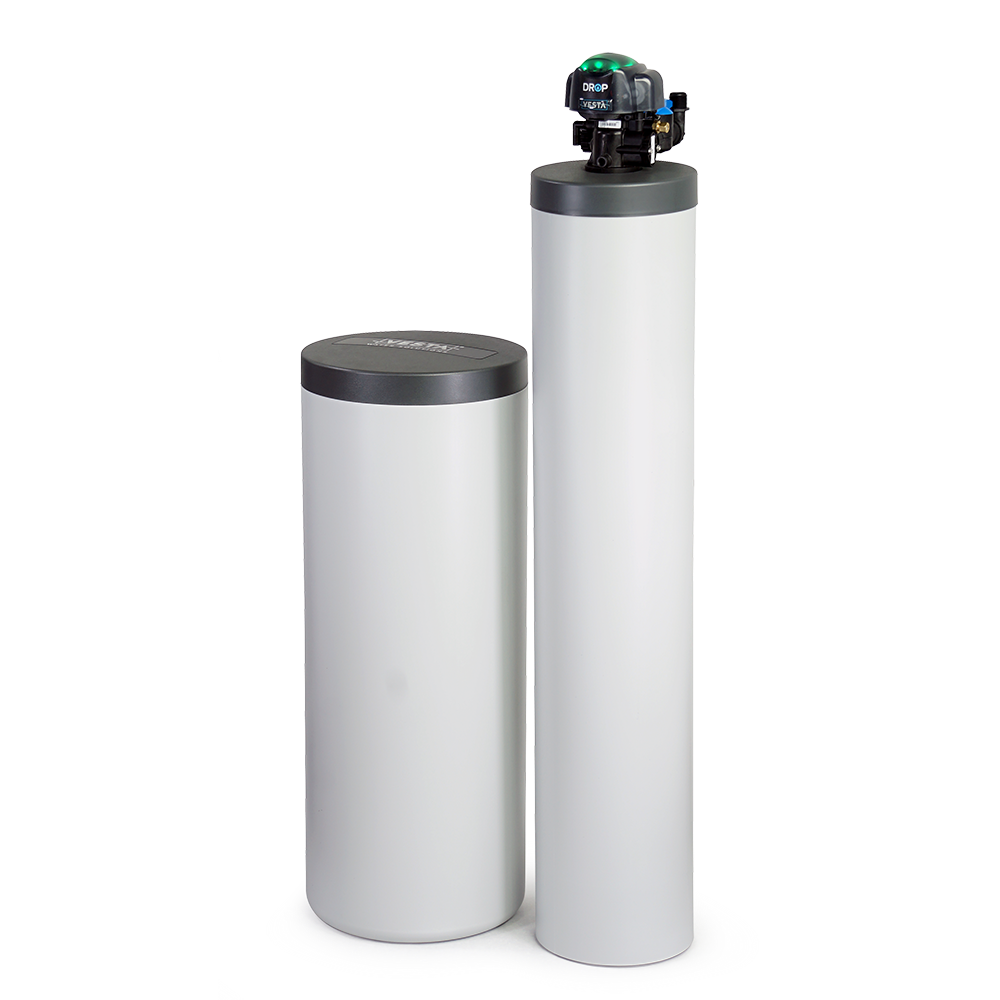

VESTA® DROP Smart Home Water Softening

  • Product image for
  • Product image for
  • Product image for
  • Product image for

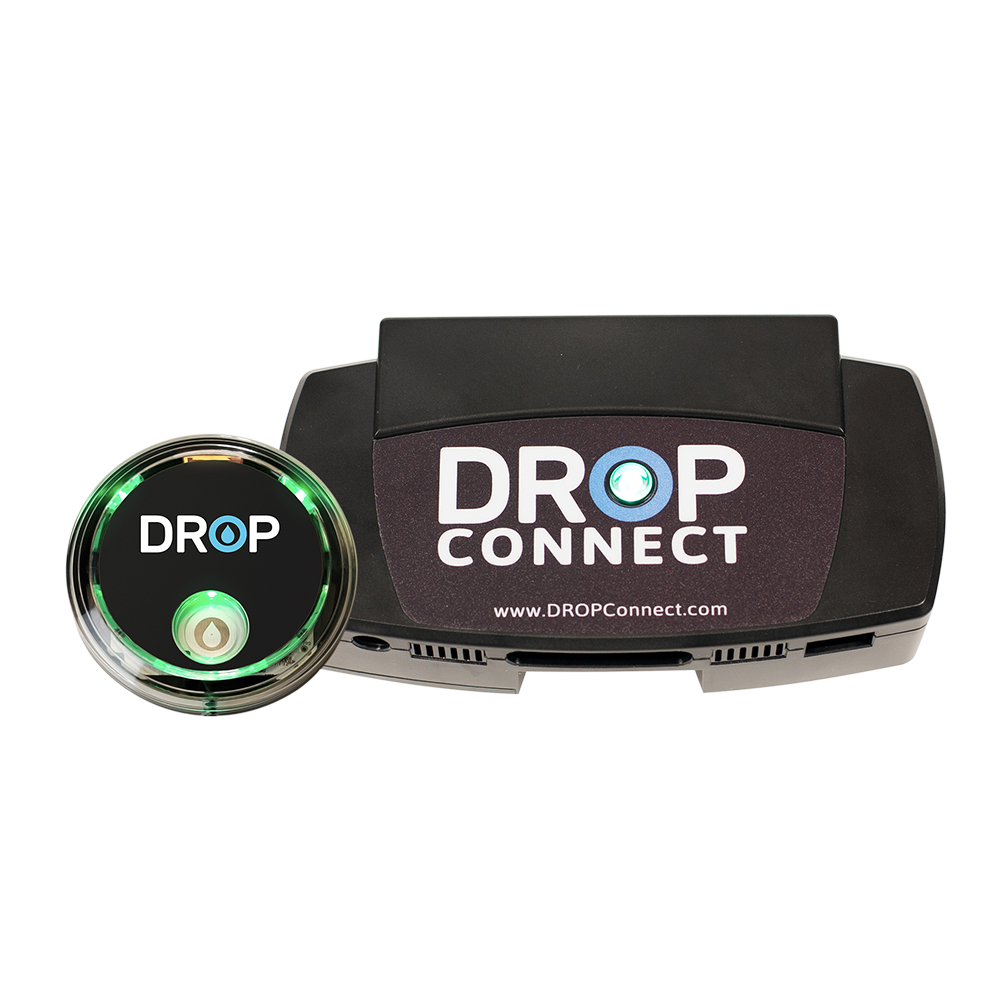

Integrating with the unique DROP Hub controller, these smart water softeners offer many conveniences and advantages. You can monitor and control your home’s water softener system remotely from any mobile device, and program it to maximize water efficiency, notify you of conditions that require attention or maintenance, or even automatically shut your water off when it senses a potential problem.

A DROP  home water softener system is the smart home automation solution for all your household water needs. Utilizing Internet of Things (IoT) technology, these residential water softener products offer cutting-edge convenience, sustainable performance and built-in damage prevention capabilities — plus all the benefits you expect from a home water softener system.


Find a VESTA Water Treatment Professional

Key Features

  • Patented piston design that allows for the water to be shut-off to the home
  • 9V battery backup for power loss

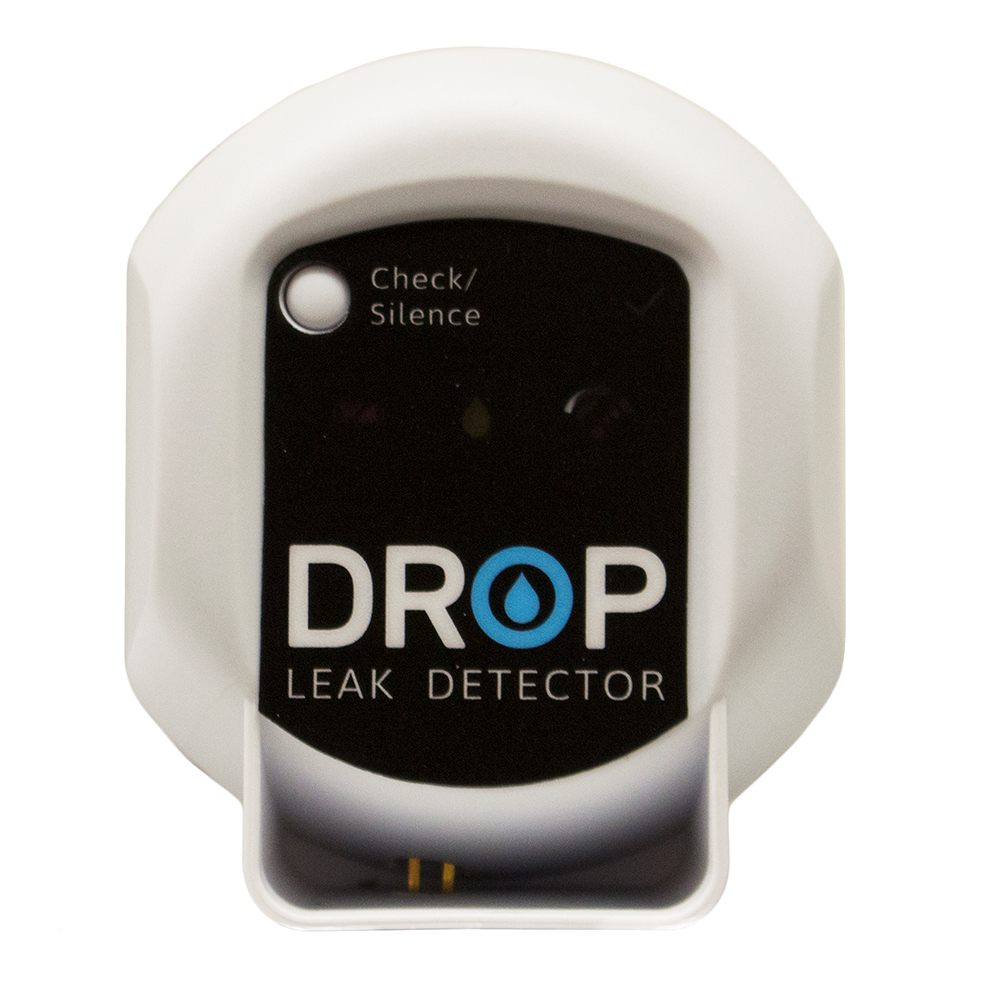

  • When paired with DROP Connect leak detectors, they provide the most comprehensive leak protection available

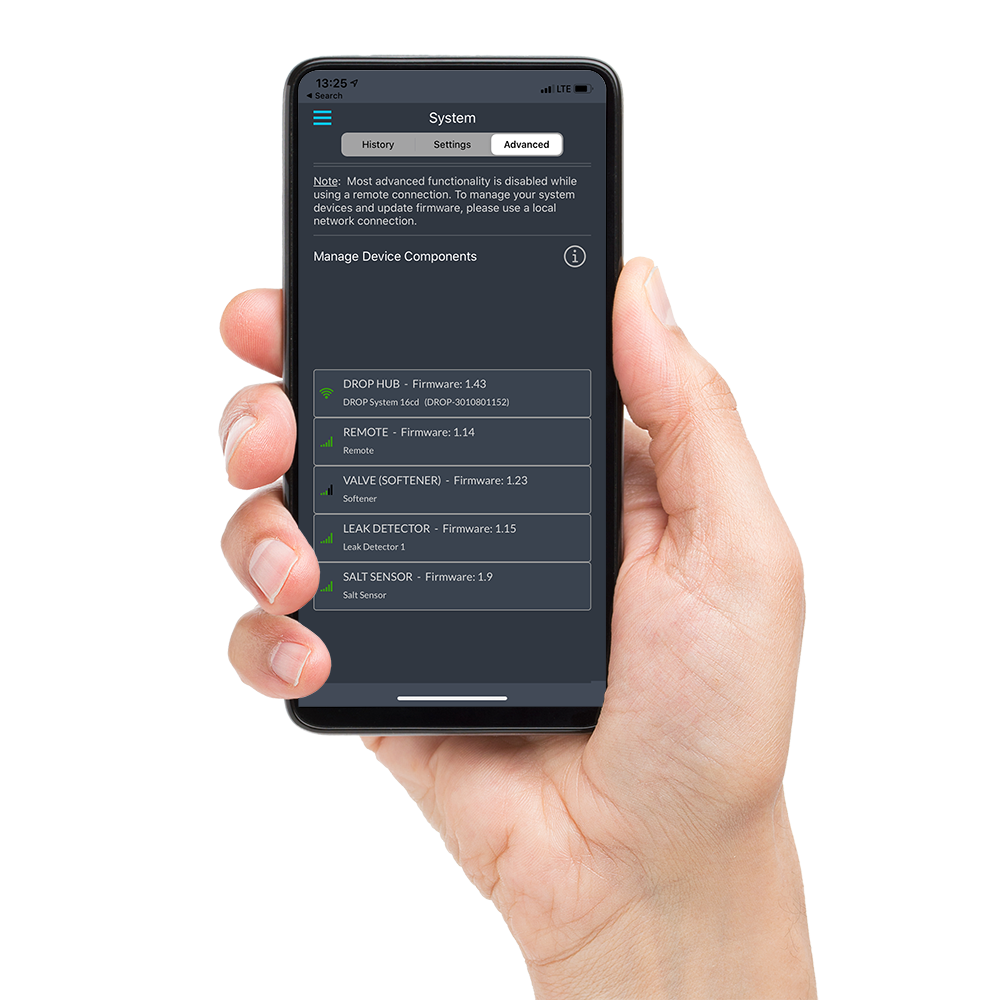

  • DROP app to control system from anywhere
  • Eliminates hardness (Calcium & Magnesium)
  • Water usage data and history
  • Demand initiated regeneration
  • Provides text messages, emails and/or push notifications for low salt and other system information to your smartphone
  • Treated water refill with brine pre-fill option
  • Proprietary two valve manual bypass with 1" MNPT Connections
  • Adjustable cycle times
  • 5 Year Warranty

Key Benefits

  • In the Bathroom In the Bathroom

    Your soap and shampoo will lather better. Your hair and skin will feel noticeably cleaner, softer and not as dry. Additionally, there will be no soap scum or mineral deposits to clean off sinks, showers, tub or toilets.

  • In the Kitchen In the Kitchen

    Dishes will clean up easily and be spot-free without the gray film glass gets when etched by mineral laden wear. Plus, hands will feel softer and look better.

  • In the Laundry In the Laundry

    Clothes will be softer, cleaner, whiter and brighter, and last longer. Using soft water and pure soap products increases the life of clothing, towels and linens up to 33%. Without hard water service issues, washing machines will last longer, too.

  • Plumbing & Appliances Plumbing & Appliances

    Appliances that use soft water will last longer and run better. Why? Because water heaters, washing machines and dishwashers using hard water can wear out 30% faster.

General Specifications for Vesta Water Softeners

Grains Capacity 24,000 32,000 40,000 48,000 64,000 80,000 110, 000
Grains Capacity (1) 22,500 30,000 37,000 45,000 60,000 75,000 105,000
Grains Capacity (2) 18,000 24,000 30,000 36,000 48,000 60,000 84,000
Grains Capacity 24,000 32,000 40,000 48,000 64,000 80,000 110, 000
Cu. Ft. of Media 0.75 1.0 1.25 1.5 2.0 2.5 3.5
Pounds of Media 38 50 63 75 100 125 175
Service Flow Rate* 7 9 10 12 13 18 22
Overall Height 52.5" 56.5" 52.5" 62.5" 56.5" 62.5" 73.5"
Floor Space Req. 26" x 16" 26" x 16" 26" x 16" 28" x 18" 32" x 18" 32" x 18" 34" x 18"
Approx Weight 83 lbs. 94 lbs. 110 lbs. 122 lbs. 146 lbs. 190 lbs. 250 lbs.
Grains Capacity
Grains Capacity (1)
Grains Capacity (2)
Grains Capacity
Cu. Ft. of Media
Pounds of Media
Service Flow Rate*
Overall Height
Floor Space Req.
Approx Weight

(1) Salt at 15 lbs. per cubic foot = 30,000 grains/cubic foot
(2) Salt at 9 lbs. per cubic foot = 24,000 grains/cubic foot
* Due to varying water conditions, water pressures and assembly materials the service flow should only be used as a guideline.
